Lab Inventory: LED, Lighting, Laser

The following tables may help you identify optical output parts we have available in the lab supply.

For a searchable index of all lab parts, please see Physical Computing Lab Inventory.

Light-Emitting Diodes (LEDs)

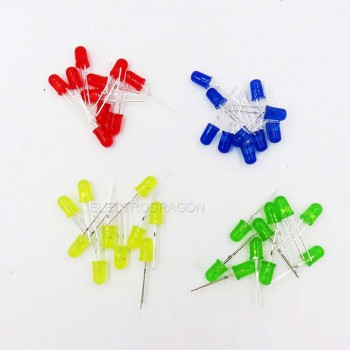

The lab stocks a variety of individual single-color LEDs in breadboard-compatible 3 mm and 5 mm packages. Each will need a ballast resistor to reduce the supply voltage to the operating voltage; the precise voltage and resistor value depends on the LED chemistry and color.

5 mm LEDs

Lab Part #	Description
Lab Part 1022	LED, red, 5mm, 620 630nm, 2.8 3.1V, 20mA, 4000 5000mcd
Lab Part 1026	LED, yellow, 5mm, 580 590nm, 2.8 3.1V, 20mA, 4000 5000mcd
Lab Part 1030	LED, green, 5mm, 520 530nm, 3.0 3.4V, 20mA, 12000 14000mcd
Lab Part 1034	LED, blue, 5mm, 460 470nm, 3.0 3.4V, 20mA, 5000 6000mcd
Lab Part 1038	LED, white, clear lens, 5mm, 5000 6200nm, 3.0 3.2V, 20mA, 12000 14000mcd
Lab Part 1042	LED, red/green (two color), diffuse, 5mm
Lab Part 1046	LED, red/green, diffuse, 5mm, drive in opposite directions for different colors
Lab Part 1050	LED, purple, UV/UVA, clear, 5mm, 400nm, 3.3V, 20–25mA, 3,500mcd
Lab Part 1064	LED, infrared, 5mm, 850nm, 1.5V forward drop, 20mA max. forward current

NeoPixel LEDs

NeoPixels are digitally-controlled RGB LEDs which follow the WS2812 three-wire protocol (power, data, ground). These use a single self-clocking data line which operates at a fixed 800 kHz rate. NeoPixel parts are most often 5V, but 12V versions do exist.

NeoPixel LEDs

Lab Part #	Description
Lab Part 2344	8 NeoPixel stick with 8 5050 RGB LEDs

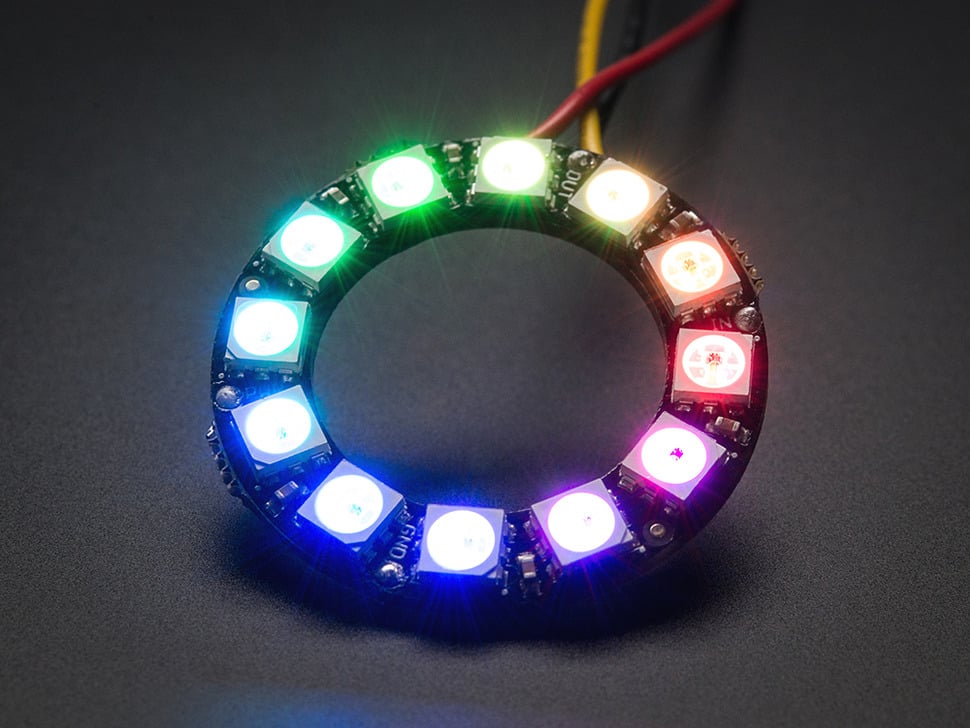

Lab Part 0911	12 NeoPixel ring with 12 5050 RGB LEDs
Lab Part 0912	16 NeoPixel ring with 16 5050 RGB LEDs
Lab Part 0914	24 NeoPixel ring with 24 5050 RGBW LEDs, warm white
Lab Part 2001	NeoPixel strip, 60 LEDs/meter, 5V, black PCB
Lab Part 0996	Flora NeoPixel, individual RGB LED on PCB
Lab Part 0998	Smart NeoPixel, individual RGB LED on breakaway PCB, breadboard compatible
Lab Part 1044	5mm NeoPixel, diffuse, 5V, single-pin-control, 24-bit color
Lab Part 1048	8mm NeoPixel, diffuse, 5V, single-pin-control, 24-bit color

WS2801 LEDs

Digitally-controlled RGB LEDs which follow the WS2801 four-wire protocol (power, clock, data, ground). These use separate clock and data much like SPI and can operate at varied data rates up to to 25MHz.

WS2801 LEDs

Lab Part #	Description

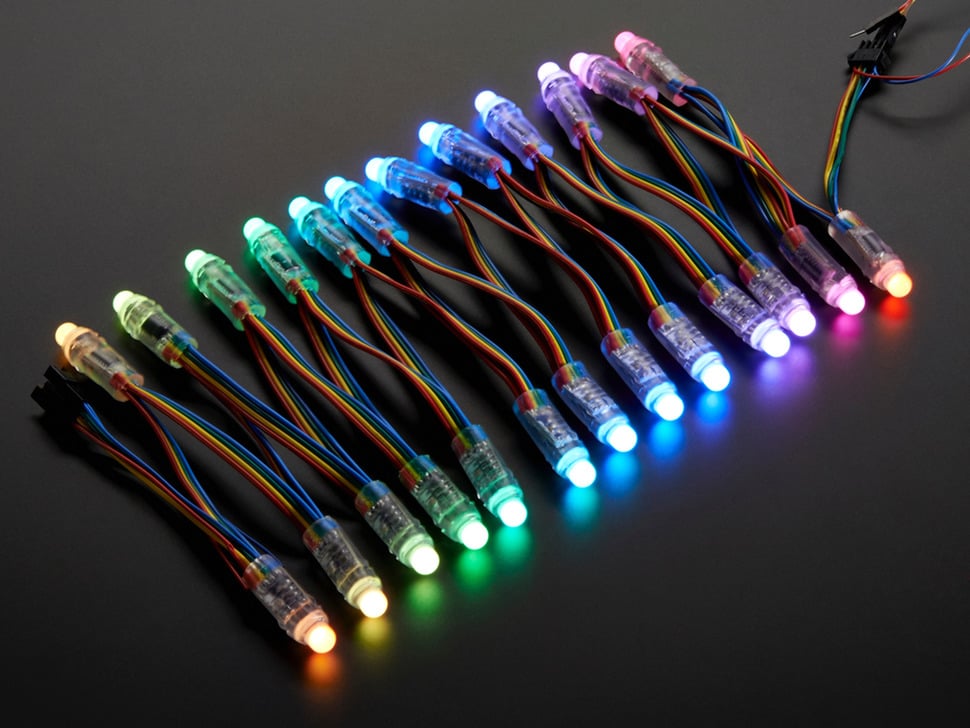

Lab Part 1996	12mm Diffused Thin Digital RGB LED Pixels (Strand of 25) - WS2801

We have also previously stocked various WS2801 flat strips, now discontinued.

Lasers

Laser diode, 5 milliwatt, 5 Volt, 650 nm (red). Draws a visible dot. Intended for long-distance through-beam sensing or laser show displays. Lab Part 0778.

Lasers

Lab Part #	Description
Lab Part 0778	Laser diode, draws dot, 5mW, 5V red laser, 650nm (red)
Lab Part 0780	Line drawing laser diode, focusable, 5mW, 3-5V Adjustable, 650nm (red)
