Cytron MD13S Motor Driver¶

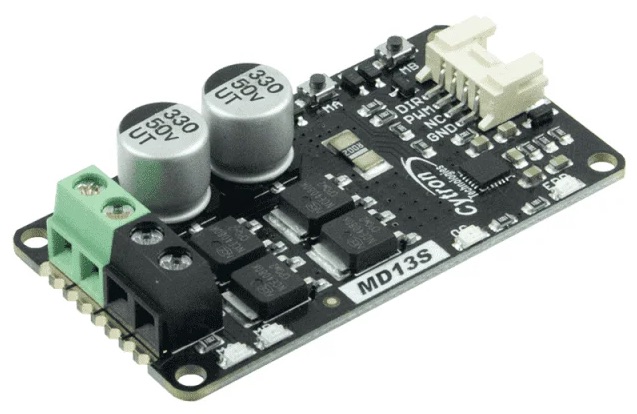

The Cytron MD13S is a driver board for brushed motors which can drive up to 13 Amps motor current from a 6-30VDC supply. It features a Grove-style connector for the direction and PWM signals. Interfacing to a microcontroller requires only two I/O pins. Screw-terminal headers are included for power and motor.
Features¶
Bi-directional control for 1 brushed DC motor
Support motor voltage from 6V to 30VDC
Maximum current up to 13A continuous and 30A peak (10 seconds)
GROVE compatible
3.3V and 5V logic level input.
Fully NMOS H-Bridge for better efficiency and no heat sink is required
Regenerative Braking
Speed control PWM frequency up to 20KHz (Actual output frequency is same as input frequency)
Support both locked-antiphase and sign-magnitude PWM operation (i.e., not RC servo PWM)
RoHS, FCC and CE compliance
Dimension: 61mm x 33mm
