Proxy Robot Model¶
The proxy robot model is a simplification of the wobbly two-wheeled
robot intended for displaying the position of a remote robot using the
delegate robot model. The body has no actuators, sensors, or physics. It
does participate in collisions, acting like a fixed rigid body.
This model is demonstrated in the network-party.wbt world.

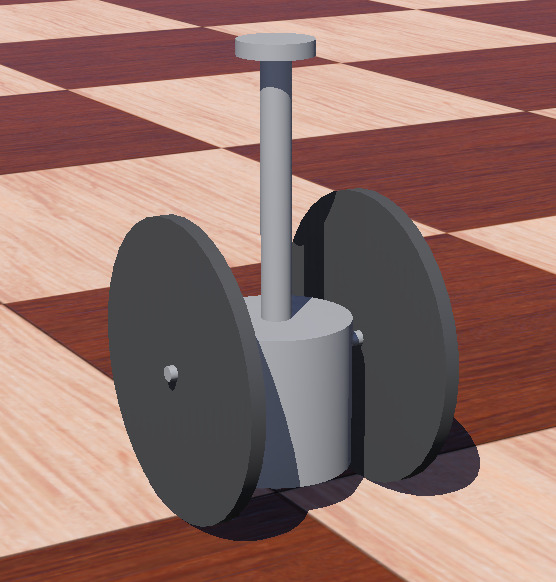

Screenshot of Webots model of a diff-drive ‘proxy’ robot.¶
proxy.proto¶
The robot model has been encapsulated in a .proto file for easy reuse. The model includes user-accessible scaling and color parameters.
1#VRML_SIM R2023b utf8
2# Proxy robot body to represent a remote robot, based on the wobbly robot body.
3# This robot has no physics but is positioned by a delegate in response to
4# position data reported over the network.
5# documentation url: https://courses.ideate.cmu.edu/16-375
6# license: No copyright, 2020-2026 Garth Zeglin. This file is explicitly placed in the public domain.
7# template language: javascript
8
9PROTO proxy [
10 field SFVec3f translation 0 0 0
11 field SFRotation rotation 0 1 0 0
12 field SFString controller ""
13 field SFString name "proxy"
14 field SFFloat wheelRadius 0.1
15 field SFFloat axleLength 0.14
16 field SFColor bodyColor 0.8 0.8 0.8
17 field SFColor wheelColor 0.3 0.3 0.3
18 field SFString customData ""
19]
20{
21 Robot {
22 # connect properties to user-visible data fields
23 translation IS translation
24 rotation IS rotation
25 controller IS controller
26 name IS name
27 customData IS customData
28
29 # calculate derived parameters
30 %<
31 let counterweightHeight = fields.wheelRadius.value;
32 let counterweightOffset = 0.75*fields.wheelRadius.value;
33 let counterweightTop = 1.25*fields.wheelRadius.value;
34 let sensorHeight = 3*fields.wheelRadius.value;
35 let stalkHeight = sensorHeight - counterweightTop;
36 let stalkOffset = counterweightTop + 0.5*stalkHeight;
37 >%
38
39 children [
40 # The body group contains three cylinders: the massive counterweight at
41 # bottom, a thin stalk rising above it, topped by the sensor disc.
42 # All these shapes participate in collision; the axle is kept separate
43 # as it is just for rendering.
44 DEF bodyShape Group {
45 children [
46 # counterweight
47 Transform {
48 translation 0 0 %<= counterweightOffset >%
49 rotation 1 0 0 0
50 children [
51 Shape {
52 appearance DEF bodyAppearance PBRAppearance {
53 baseColor IS bodyColor
54 roughness 0.5
55 metalness 0.5
56 }
57
58 geometry Cylinder {
59 height %<= counterweightHeight >%
60 radius 0.05
61 }
62 }
63 ]
64 }
65 # sensor disc
66 Transform {
67 translation 0 0 %<= sensorHeight >%
68 rotation 1 0 0 0
69 children [
70 Shape {
71 appearance USE bodyAppearance
72 geometry Cylinder {
73 height 0.01
74 radius 0.025
75 }
76 }
77 ]
78 }
79 # stalk
80 Transform {
81 translation 0 0 %<= stalkOffset >%
82 rotation 1 0 0 0
83 children [
84 Shape {
85 appearance USE bodyAppearance
86 geometry Cylinder {
87 height %<= stalkHeight >%
88 radius 0.01
89 }
90 }
91 ]
92 }
93 ]
94 }
95 # Visible axle shape, not part of the boundingObject.
96 DEF axleShape Transform {
97 translation 0 0 %<= fields.wheelRadius.value >%
98 rotation 1 0 0 1.5707963267948966
99 children [
100 Shape {
101 appearance USE bodyAppearance
102 geometry Cylinder {
103 height %<= fields.axleLength.value + 0.02 >%
104 radius 0.005
105 }
106 }
107 ]
108 }
109 # Define the left wheel axis, pointing in the +Y direction along the axle.
110 HingeJoint {
111 jointParameters HingeJointParameters {
112 axis 0 1 0
113 anchor 0 0 %<= fields.wheelRadius.value >%
114 }
115 # Define the left wheel solid, offset along +Y along the axle.
116 endPoint DEF leftWheel Solid {
117 translation 0 %<= 0.5*fields.axleLength.value >% %<= fields.wheelRadius.value >%
118 rotation -1 0 0 1.5707963267948966
119 children [
120 # Define the left wheel shape and appearance, which is used by the right wheel solid.
121 DEF wheelShape Transform {
122 rotation 0 0 1 0
123 children [
124 Shape {
125 appearance PBRAppearance {
126 baseColor IS wheelColor
127 roughness 0.5
128 metalness 0.5
129 }
130 geometry Cylinder {
131 height 0.01
132 radius %<= fields.wheelRadius.value >%
133 }
134 }
135 ]
136 }
137 ]
138 name "left wheel"
139 boundingObject USE wheelShape
140 }
141 }
142 # Define the right wheel axis, also pointing in the +Y direction along the axle
143 # so positive wheel rotations will move forward.
144 HingeJoint {
145 jointParameters HingeJointParameters {
146 axis 0 1 0
147 anchor 0 0 %<= fields.wheelRadius.value >%
148 }
149 # Define the right wheel solid, offset along -Y along the axle.
150 # The wheel shape is inherited from the left wheel.
151 endPoint DEF rightWheel Solid {
152 translation 0 %<= -0.5*fields.axleLength.value >% %<= fields.wheelRadius.value >%
153 rotation 1 0 0 1.5707963267948966
154 children [
155 USE wheelShape
156 ]
157 name "right wheel"
158 boundingObject USE wheelShape
159 }
160 }
161 ] # close children list of Robot
162 boundingObject USE bodyShape
163 } # close Robot
164}
