Design Example: Motor-Driven Linkage¶
This sample design is a work in progress intended to show off several techniques: a stable freestanding base, use of clevis pins as pivots, constructing a four-bar linkage, and mounting a motor.
Motor-Driven Linkage¶

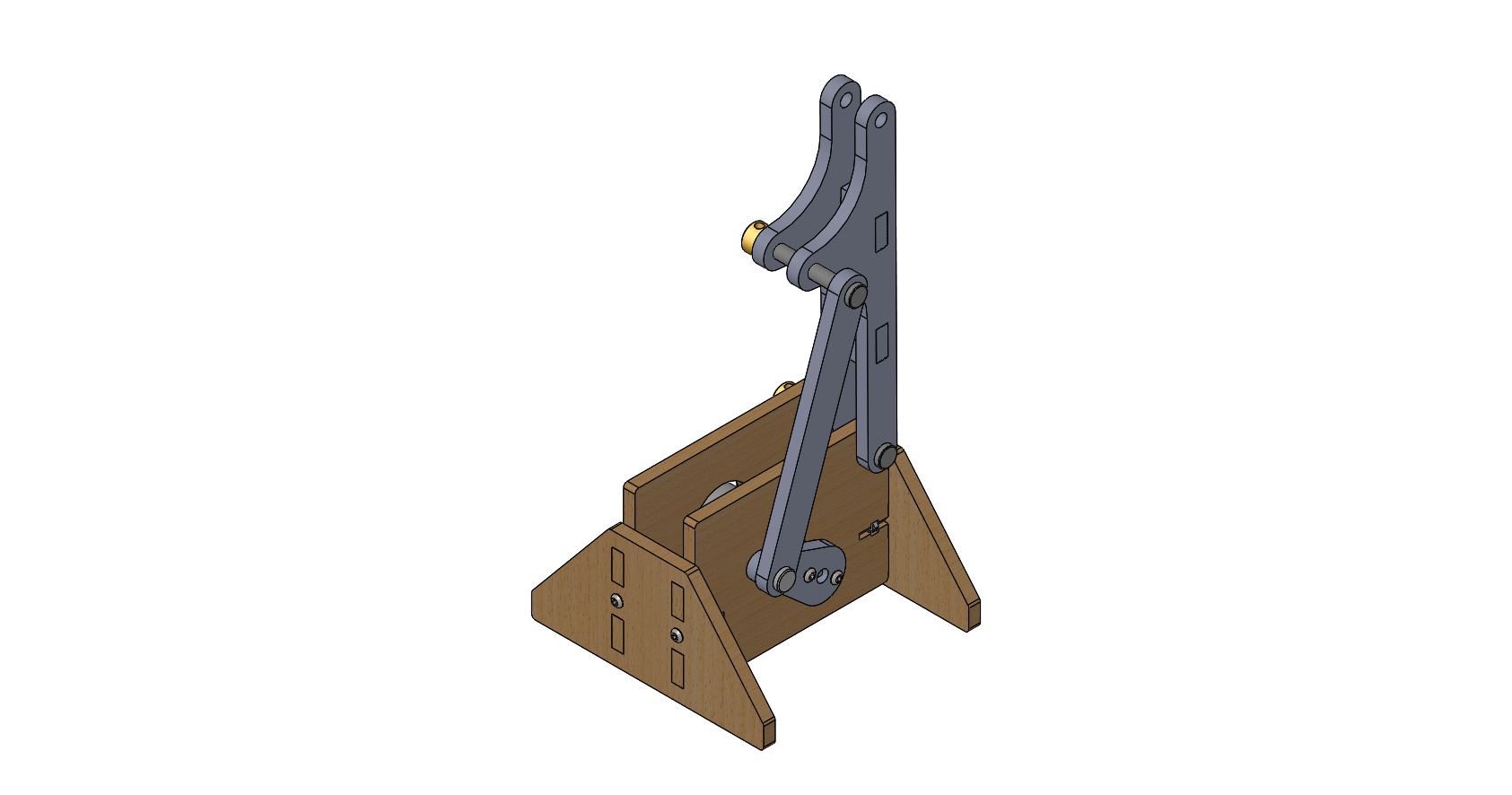

Free-standing example of a motor-driven four-bar linkage. Designed for 6 mm plywood.¶
Proximal Link¶

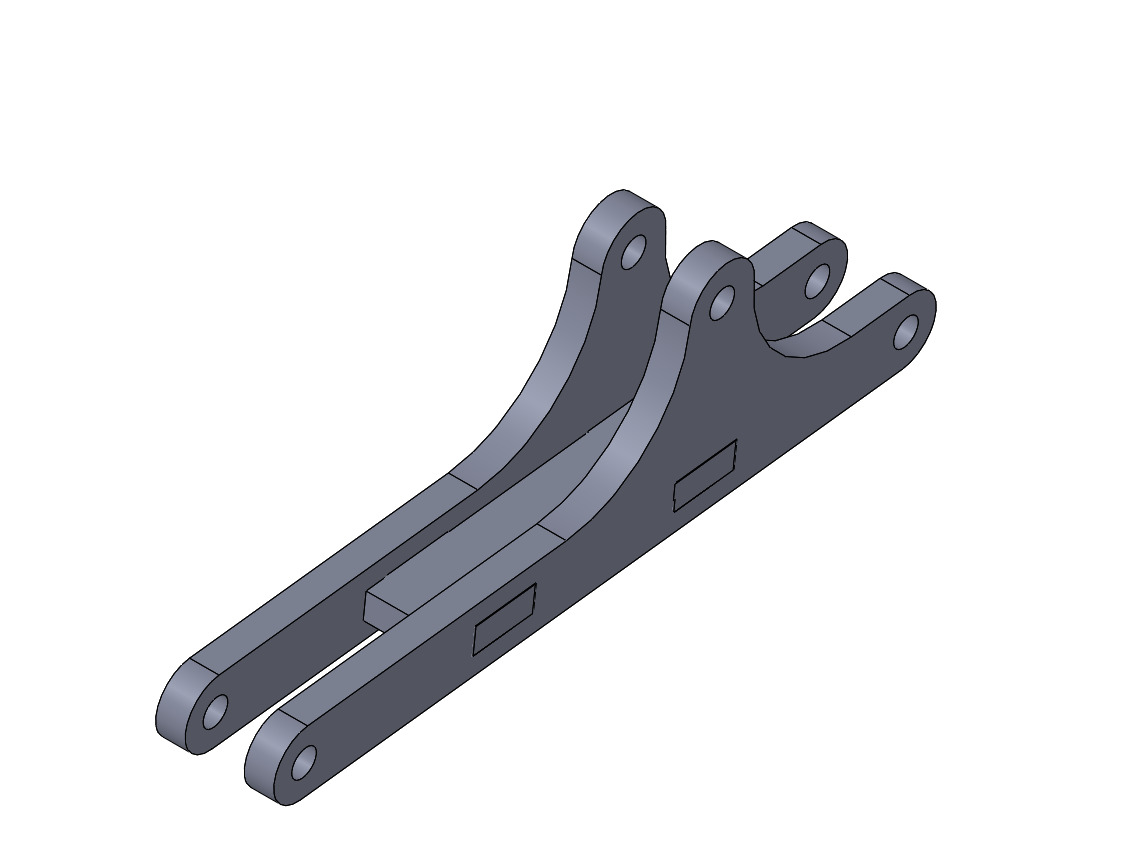

Linkage component with three pivot points, structured as two identical plates attached via a spacing brace. Designed for 6 mm plywood.¶
